ATA ATS-1 Sectional Garage Door Opener

NO DELIVERY, FOR OFFICE PICKUP ONLY

The Automatic Technology ATS-1 combines affordable garage door control with the smooth and reliable operation that Automatic Technology is known for. The ATS-1 is designed for domestic, sectional single or double garage doors up to 15m2. Featuring a 700N DC Motor with soft start and stop, courtesy LED lights and an exceptionally quiet belt c-rail. Designed to make garage door automation easy.

This Product Includes:

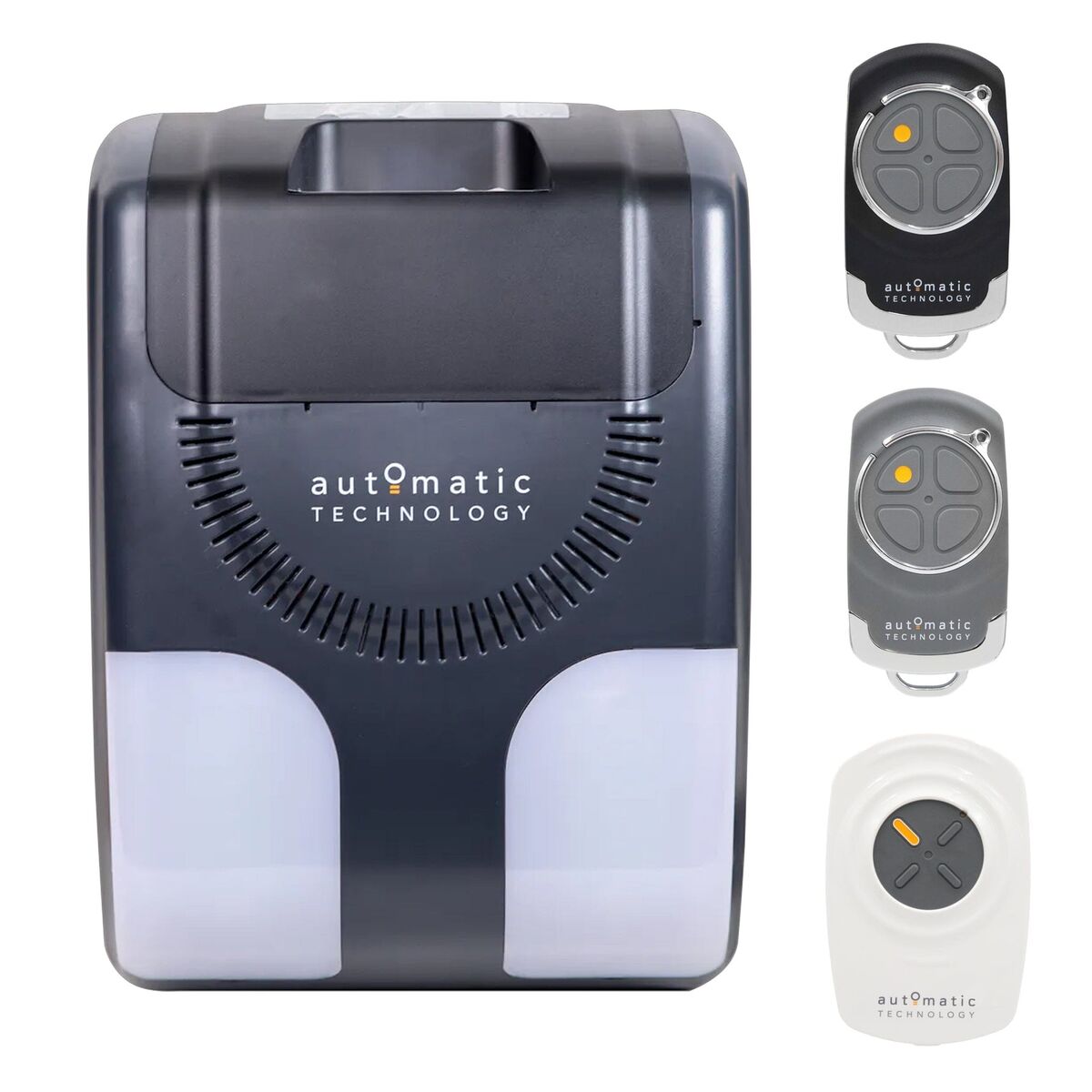

• 1 x ATA ATS-1 Opener
• 2 x ATA PTX-6 Remotes
• 1 x ATA WTX-6v1 Wall Button
• 1 x ATA Belt Rail

Specifications:

• Power Supply: 230V - 240V. 50Hz
• Rail Headroom: 25mm
• Minimum headroom: 57mm
• Short Term Peak force: 700N
• Rated Force: 400N/40kg
• Nominal force: 200N/20kg
• Typical Travel Speed: 180mm / per second
• Receiver Type: Multi-frequency UHF FM
• Receiver Code Storage Capacity: 64 X 4-button Transmitters
• Coding System: Triocode 128
• Coding Type: 128 Bit Rolling Code
• Number of Code combinations: 3.4 x 10³⁸ Codes
• Transmitter Battery: CR2032 (3 Volts)
• Courtesy Light: LED (Light Emitting Diodes)
• Warranty: 5 year / 10,000 cycles*

Warranty Information:

• 1 Year Back to Base Manufacturer Warranty if you Install it Yourself
