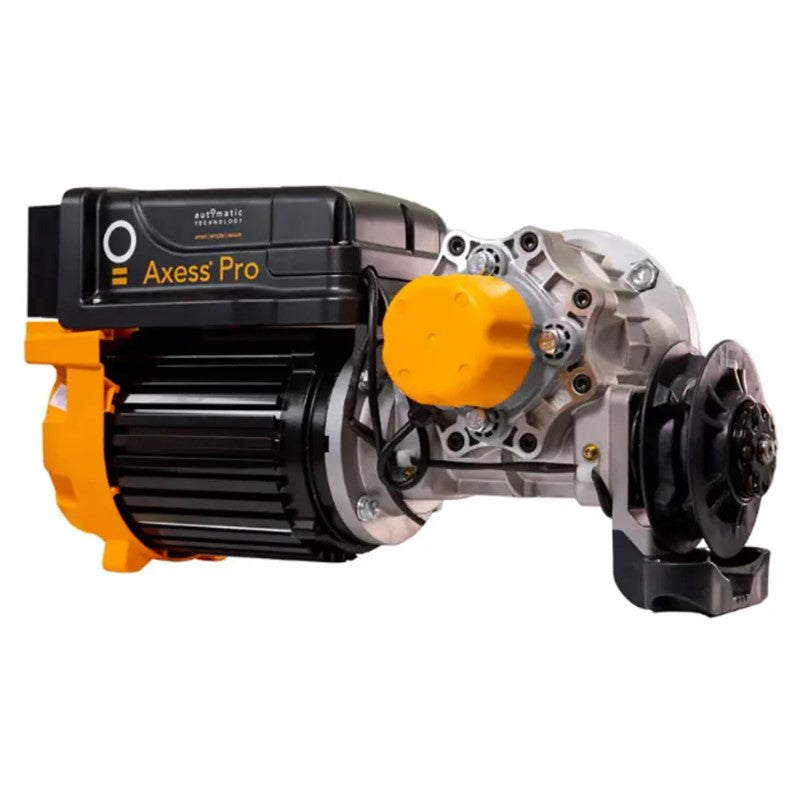

The Axess Pro Series 3100 is a cutting-edge solution tailored for the demanding world of industrial shutter automation. Offering a range of power input and output variations, along with a flexible suite of control and safety options, this amalgamation of strength and intelligence represents a significant leap forward.

Designed for doors up to 36m² in size, this opener can be operated using either a simple manual console or the advanced logic control system equipped with an LCD screen, integrated time clock, and TrioCode technology. The flagship 240V models require only a standard power outlet for installation, yet provide 3-phase power, exceptional reliability, and precise speed control courtesy of a custom-designed inverter.

SPECIFICATIONS

• Input Voltage: 230-240V a.c. 1-phase
• Standby power: 2.8W
• Motor Type: Induction
• Motor Power: 0.5 HP - 375W 1.0 HP - 750W
• Controller Fuse: 10A
• Short-Term Lifting Force: 1000N
• Rated Duty Cycle: 60%
• Rated Door Area: 0.5 HP - 18m² 1.0 HP - 36m²
• Typical Travel Speed: Variable via inverter
• Courtesy Light: Output available
• Safety Beam Compatible: L1 Logics 1x Wireless Safety Beam/2-wire Safety Beam, or 1x 3-Wire Safety Beam L2 Logics 3x Wireless Safety Beam/2-wire Safety Beam
• LCD Screen: Yes
• Receiver / Transmitter Frequency: Multi-frequency UHF FM (433.47, 433.92 & 434.37 MHz)
• Coding System: Code hopping (Non-linear encryption algorithm)
• Transmitter Type: TrioCode128
• Transmitter Capacity (x 4-button registers): 511

Includes:

• ATA Axess Pro Series 3100 (Motorhead Only)
