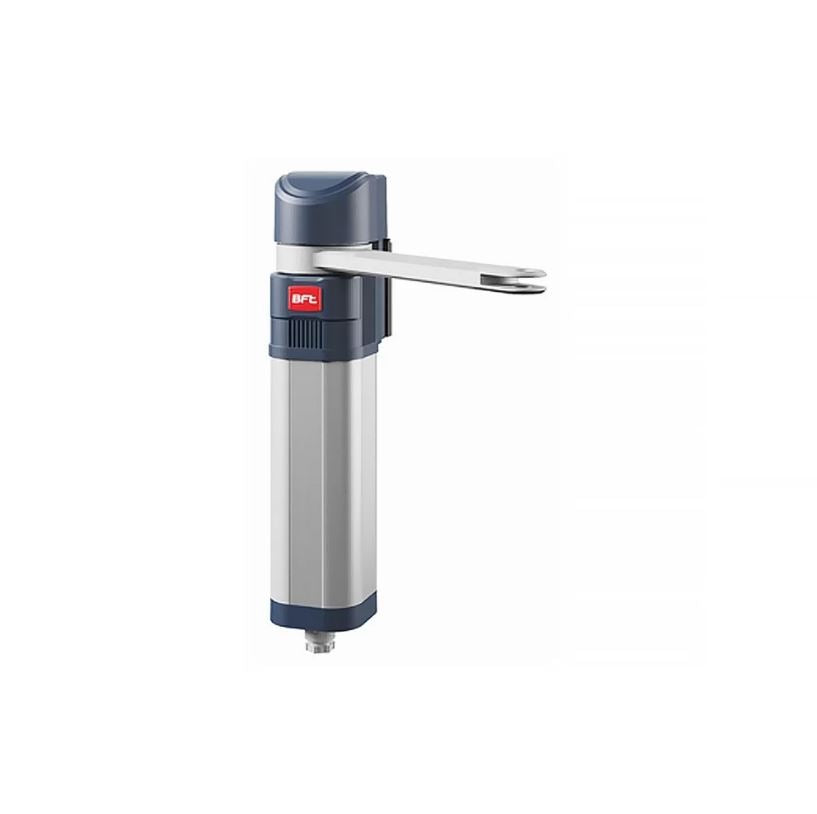

BFT E5 BT A12 Low Voltage Electromechanical Swing Gate Opener

Please note that the BFT E5 BT A12 Low Voltage Electromechanical Swing Gate Opener does not come with BFT LBA Lever for Articulated Arm - N734921.

This item has been discontinued and replaced with the BFT E5 A12 UL Reversible Swing Gate Operator.

Features:

• Installs To Pillars Or Columns
• For Pedestrian Gates Up To 176 lbs
• For Pedestrian Gates Up To 3 ft Wide
• Ideal For Multi-Resident And Commercial Sites
• Push & Go Function To Manually Open Gate Completely
• Easy To Install Fixing Bracket For Columns And Pillars
• Compact, Reversible Electromechanical Swing Gate Opener
• U-Link Connectivity Platform Compatible Using THALIA Control Unit
• Absolute Encoder Recognizes Position To Manage Slow Down At All Times
• THALIA Unit Has Standard Color Terminal Blocks For Output/Input For Quick Assembly
• D-Track Path Tracking Includes Smart Torque Management, Constant Updating For Accuracy
• Closes In 6.5s (90 Degrees Manoeuver Including Slowdown) Based On Weight/Dimensions Of The Leaf
• Safety Enhancements Include Ability To Set Gate Automatic Closing After Opening And Remote Opening

Specifications:

• 120V Control Unit: THALIA SD 120V
• Board Power Supply: 230V
• Motor Voltage: 24V
• Power Consumption: 40W
• Max Width Of Door/Gate Wing: 1.2m (3 ft)
• Cycle Time: 6.5s
• Limit Switch: Absolute Encoder
• Release Type: Reversible
• Impact Reaction: D-Track
• Frequency Of Use: Semi-Intensive
• Degree Of Protection: IP44
• Interconnectivity: YES
• Max Weight Of Door/Gate Wing: 80kg (176 lbs)
• Average Opening/Closing Time: 6.5s
• Model: E5 BT A18
