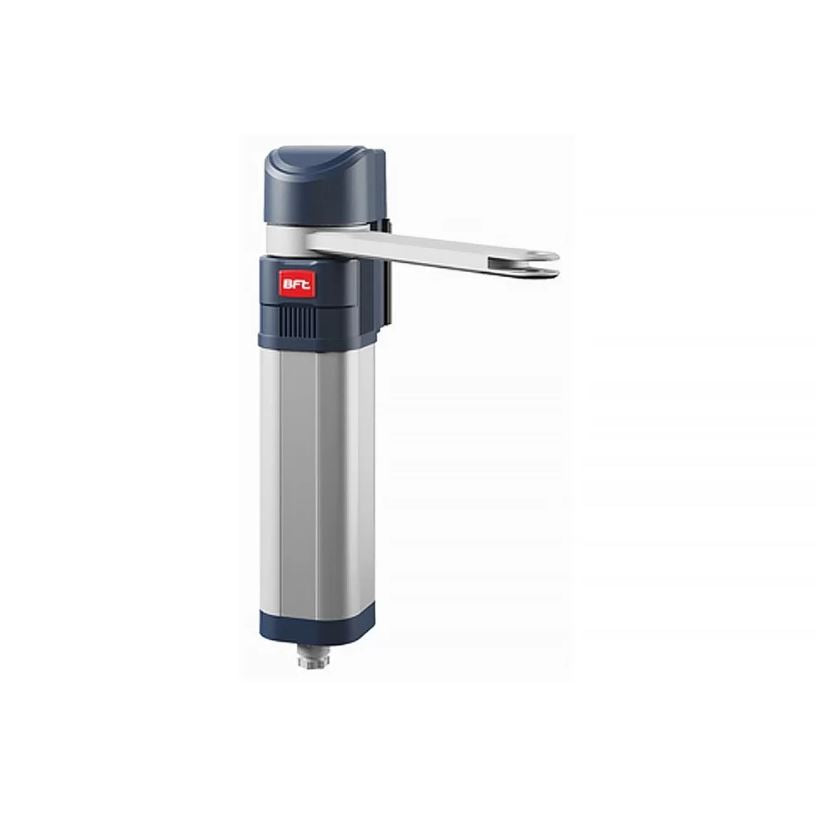

BFT E5 BT A18 Low Voltage Electromechanical Swing Gate Opener

Features:

• Installs To Pillars Or Columns
• For Pedestrian Gates Up To 220 lbs
• For Pedestrian Gates Up To 5 ft Wide
• Ideal For Multi-Resident And Commercial Sites
• Push & Go Function To Manually Open Gate Completely
• Easy To Install Fixing Bracket For Columns And Pillars
• Compact, Reversible Electromechanical Swing Gate Opener
• U-Link Connectivity Platform Compatible Using THALIA Control Unit
• Absolute Encoder Recognizes Position To Manage Slow Down At All Times
• THALIA Unit Has Standard Color Terminal Blocks For Output/Input For Quick Assembly
• D-Track Path Tracking Includes Smart Torque Management, Constant Updating For Accuracy
• Safety Enhancements Include Ability To Set Gate Automatic Closing After Opening And Remote Opening
• 4.5-6.5s Opening Speed (90 Degrees Manoeuver Including Slowdown) Based On Weight/Dimensions Of The Leaf

Specifications:

• Control Unit: THALIA
• Board Power Supply: 230V
• Motor Voltage: 24V
• Power Consumption: 40W
• Max Width Of Door/Gate Wing: 1.8m (5 ft)
• Cycle Time: 14s
• Limit Switch: Absolute Encoder
• Release Type: Reversible
• Impact Reaction: D-Track
• Frequency Of Use: Semi-Intensive
• Degree Of Protection: IP44
• Interconnectivity: YES
• Max Weight Of Door/Gate Wing: 100kg (220 lbs)
• Average Opening Time: 4.5-6.5s
• Model: E5 BT A18
