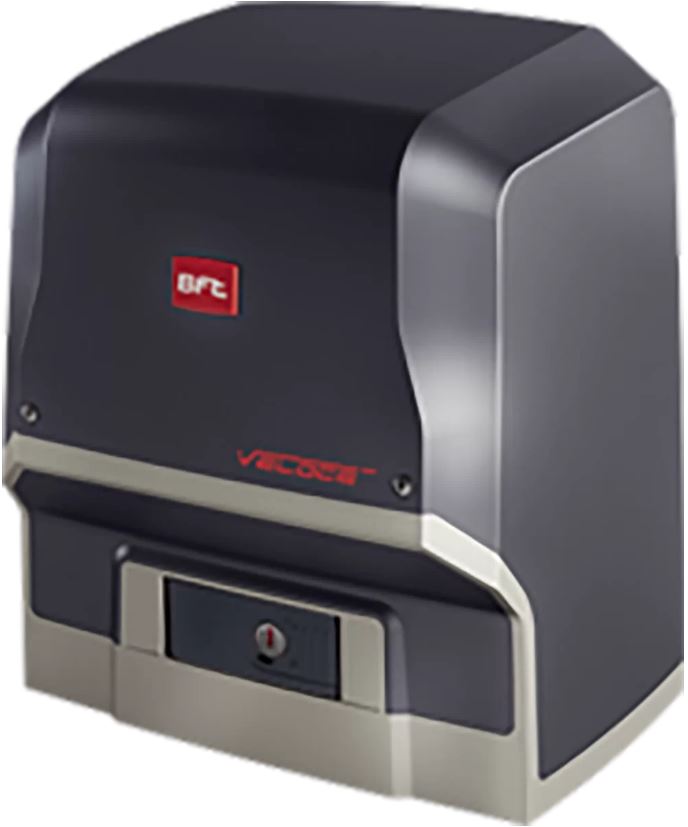

BFT Icaro Veloce Smart AC A1000 Automatic Sliding Gate Opener (230V)

Key Features

• Fast Operation: Opens at 25 meters per minute to minimize waiting times and improve site access.
• Smart Torque Management: D-Track technology adjusts torque in real time to adapt to environmental changes and system wear.
• Oil Bath Gearbox: All gears operate in a continuous oil bath for optimal lubrication and extended life.
• Integrated Control: Includes LEO B CBB SV control board with U-Link protocol compatibility for remote monitoring and configuration.
• Enhanced Safety: Features a personalized key release, mechanical clutch, and front-facing screws for easier maintenance.

Specifications

• Power Supply: 230 V
• Max Gate Weight: 1000 kg (2204 lbs)
• Gate Panel Speed: 25 m/min
• Power Consumption: 750 W
• Max Torque: 40 Nm
• Control Unit: LEO B CBB SV
• Gearbox Type: Oil Bath
• Manual Release: Lever with personalized key
• Locking: Mechanical
• Slowdown: Yes
• Pinion Module: 4 mm (25 teeth)
• Impact Reaction: 8K2 safety edge compatible (not included)
• Protection Rating: IP24
• Operating Temperature Range: 5 to 131 Degrees F
• Frequency of Use: Very intensive
• Interconnectivity: U-Link compatible
