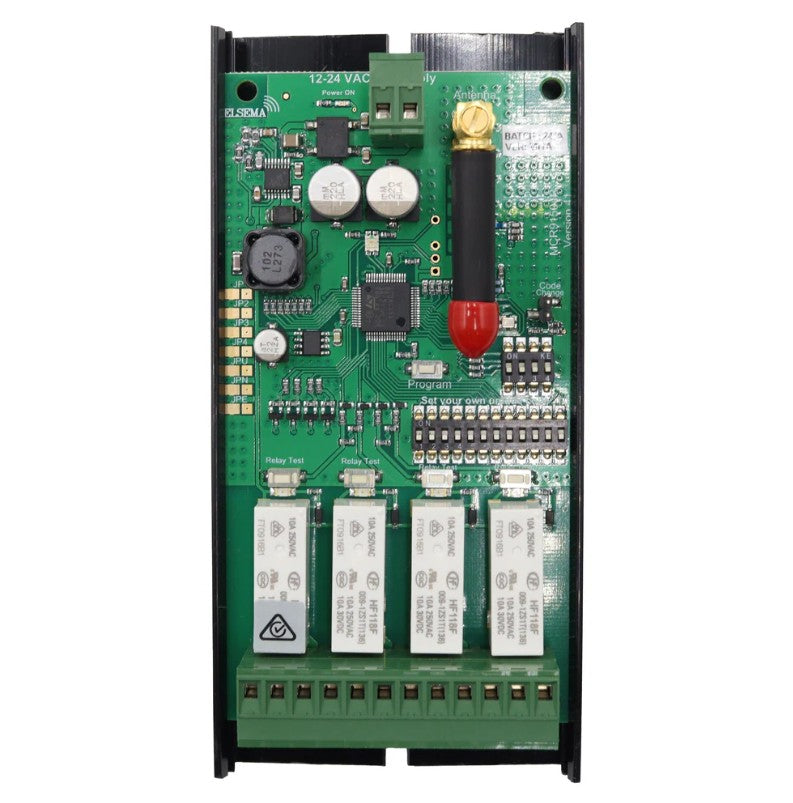

Elsema MCR91504R 915MHz Multicode Receiver 4CH

Technical Specifications:

• Supply Voltage: 10-28 Volts AC/DC
• Coding Options: 12-way dip switch or encrypted coding
• Output: Single relay output, rated at 8 Amps at 240VAC
• Frequency: 915MHz
• Compatible Transmitters: All Elsema MCT915xx series
• LED Indicator: Red LED for signal reception
• Mounting: Pluggable terminal blocks, SMA antenna connector, quick mount system (QM100)
