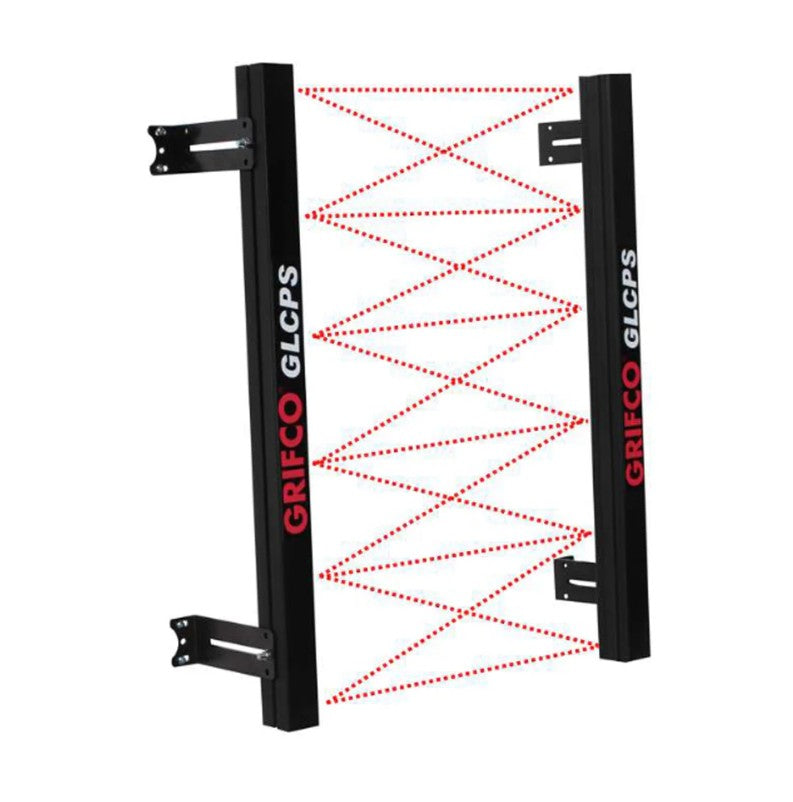

Grifco Light Curtain Protector System - Exc Bracket (113 504)

Includes:

• 2 x Housed Light Curtain rails
• 1 x Connecting cable
• 1 x Synchronisation cable (10m)
• 1 x Interface module
• 6 x Mounting Brackets and fasteners

Product Specification:

• Max. Operating Range: 1 - 10m
• Max. Ambient Light: 100 000 Lux
• Aperture Angle at 3m: Tx: ≤ ± 10° and Rx: ≤ ± 20°
• Supply Voltage USP: 10 - 30VDC
• Current Consumption at 24VDC: 100mA
• Output: PNP/NPN (push-pull) or FSS
• Output load: 100mA, 100nF
• Typ. Res. Time with 32 Elements: 90ms
• Max. Door Speed: 2.5m/s
• Status LED RX: Object Detected (Red) / No Object Detected (Green)
• Status LED TX: Power OK (Green)
• Cross Section: 12 mm x 16 mm
• Max. Protection Height: 2,500 mm
• Housing Material: Natural anodized aluminium
• Enclosure Rating: IP67
• Temperature Range: -40°c - +60°c
