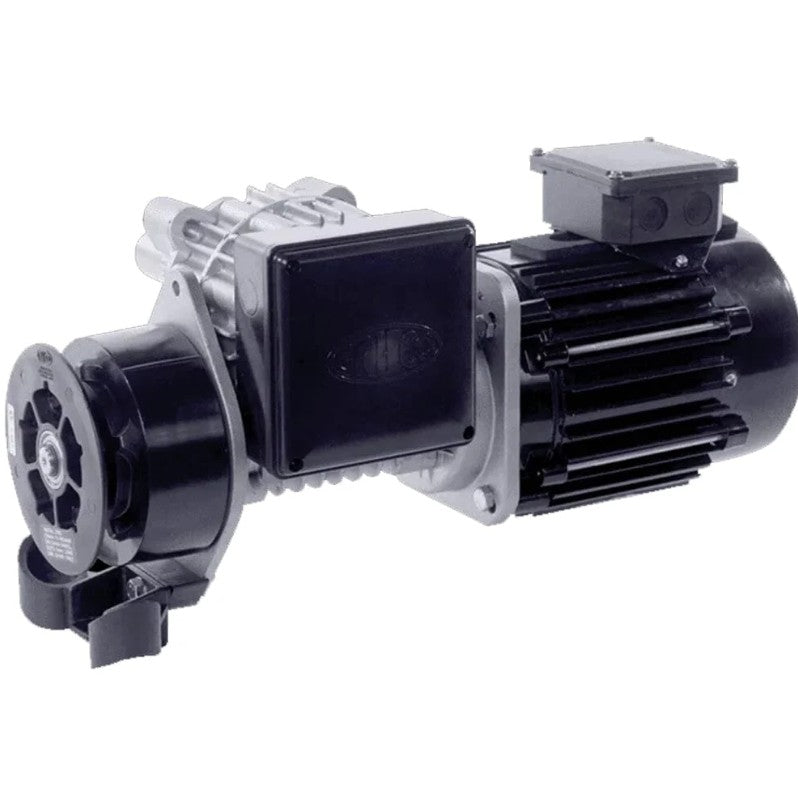

Grifco ML103M mDrive Operator Low Cycle for Roller Shutters - Right | 3 Phase | 1Hp

FOR PICK UP ONLY

What’s in the Box?

It includes mDrive Operator Only. All wall controls and mounting hardware available separately.

Information for Roller Shutters

All operators have a recommended maximum Roller Shutter area listed in the specification table. All recommended sizes are based on a “Standard Roller Shutter” (refer below):

• The Shutter is correctly spring balanced
• The Shutter has max 1.0mm x min 100mm slats, with a Diameter 150mm drum for shutters max 36m², or Diameter 200mm drum for shutters 36 - 50m²
• The Shutter has no wind-locks
• A sprocket ratio ≥ 4:1 is used

Specifications

• LC = Low cycle (10% run time / hour).

• HC = High cycle (30% run time / hour).

• When specifying an upgraded model, please use the appropriate abbreviation before the “L” or “R” handing. For example ML102MWR.
