Grifco S-Drive SDO 2.4M Rail GPS15 2X e960G

FOR PICK UP ONLY

Key Features

• The quiet, DC motor and purpose-designed gearbox deliver extremely
  smooth and fast door cycles, with soft start and soft stop
• The integral logic boards offer ultimate adaptability to meet the
  demanding needs of carpark applications
• The extremely durable rail and innovative sliding trolley have been
  engineered to meet the high-cycle demands of busy carpark doors
• The operator has been thoughtfully designed for low ceiling carpark
  applications, with a low profile, lockable enclosure
• Integral Battery Backup (BBU) offers ultimate reliability for numerous
  cycles in the absence of power

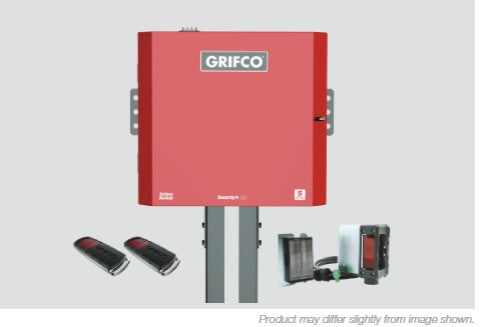

What’s in the Kit?

• S-Drive Operator with Integral Battery Backup (BBU)
• Rail for door max 2.4m high
• GPS15 Reflective Safety Beam
• 2 x E960G 4-Channel Transmitters

Specifications

• Power Supply 230-240 VAC 50Hz, 400W
• Op. Voltage 24V DC
• Duty Cycle 100%
• Door Speed 20cm/sec
• Max Door Size 26m²
• Max Door Weight 315.5kg
• Max Door Height 2.4m
