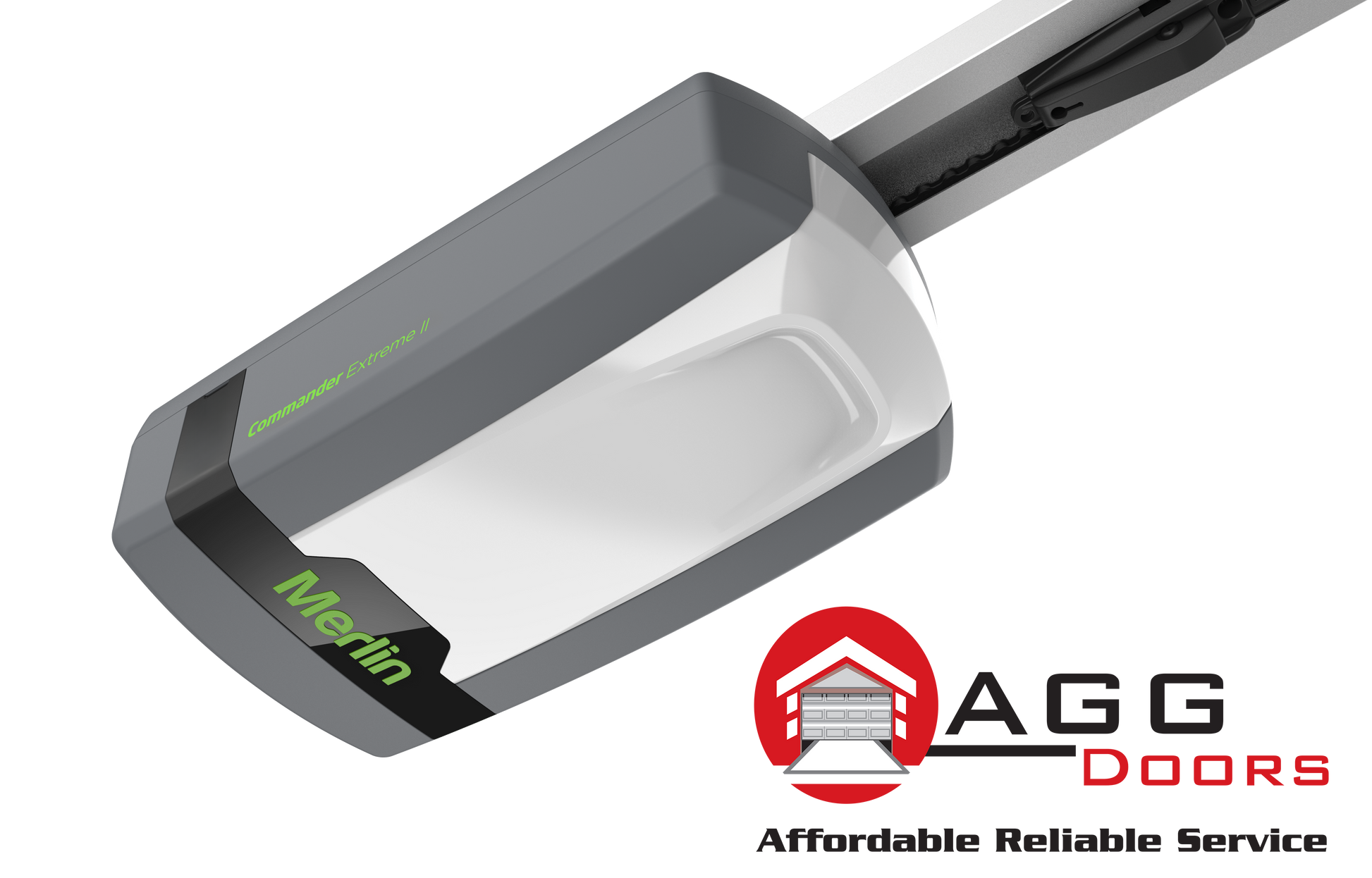

Commander Extreme II MS127MYQ

FOR PICK-UP ONLY

This Product Includes:

• Remote Controls: 2 x E970M Four-button car visor remotes (Security+ 2.0).
• Wall Control: 1 x E148M Two-button wireless wall button.

Product Features:

• Heavy Lifting: Capable of lifting doors up to 150 kg standard, or up to 286 kg (with safety beams and slow speed setting).
• myQ Compatibility: Allows smartphone monitoring and control (requires additional myQ Connectivity Kit/Gateway).
• Security+ 2.0: Multi-frequency technology that eliminates interference and uses rolling codes to prevent "code grabbing.
• Battery Backup Compatible: Works during power outages (requires optional battery accessory).
• Quiet Operation: Features a quiet DC motor with Soft-Start and Soft-Stop to reduce noise and mechanical stress.
• LED Courtesy Lighting: Integrated powerful LED lighting that activates with the door.

Specifications:

General

• Input Voltage: 240V AC.
• Motor: 24V DC with thermal overload protection.
• Max Pulling Force: 1200 N.
• Max Door Height: 3.5m.
• Max Door Area: 20m².
• Headroom Required: Minimum 30mm.
• Radio Frequency: 433.30, 433.92, 434.54 MHz.
• Standby Power: Approximately 2.2W.

Safety Features:

Premium Automatic Safety Reverse

• Stops and reverses the door automatically if an obstruction is detected while closing.

Automatic Force Sensing

• Monitors and adjusts the force required to move the door with every cycle.

Manual Release

• Allows for manual door operation during emergencies or power failures.

Timer-to-Close

• Automatically closes the door after a pre-set time (requires safety beams).

WARNING!

The product includes Button/Coin Cell Batteries: The remote controls contain small button batteries.

DANGER: If swallowed, a lithium button battery can cause severe or fatal injuries within 2 hours.

Keep away from children: Store new and used batteries out of reach. If you suspect a battery has been swallowed, seek immediate medical attention.

Automatic Drive: The door may operate unexpectedly; do not allow children to play near the door or with controls.
