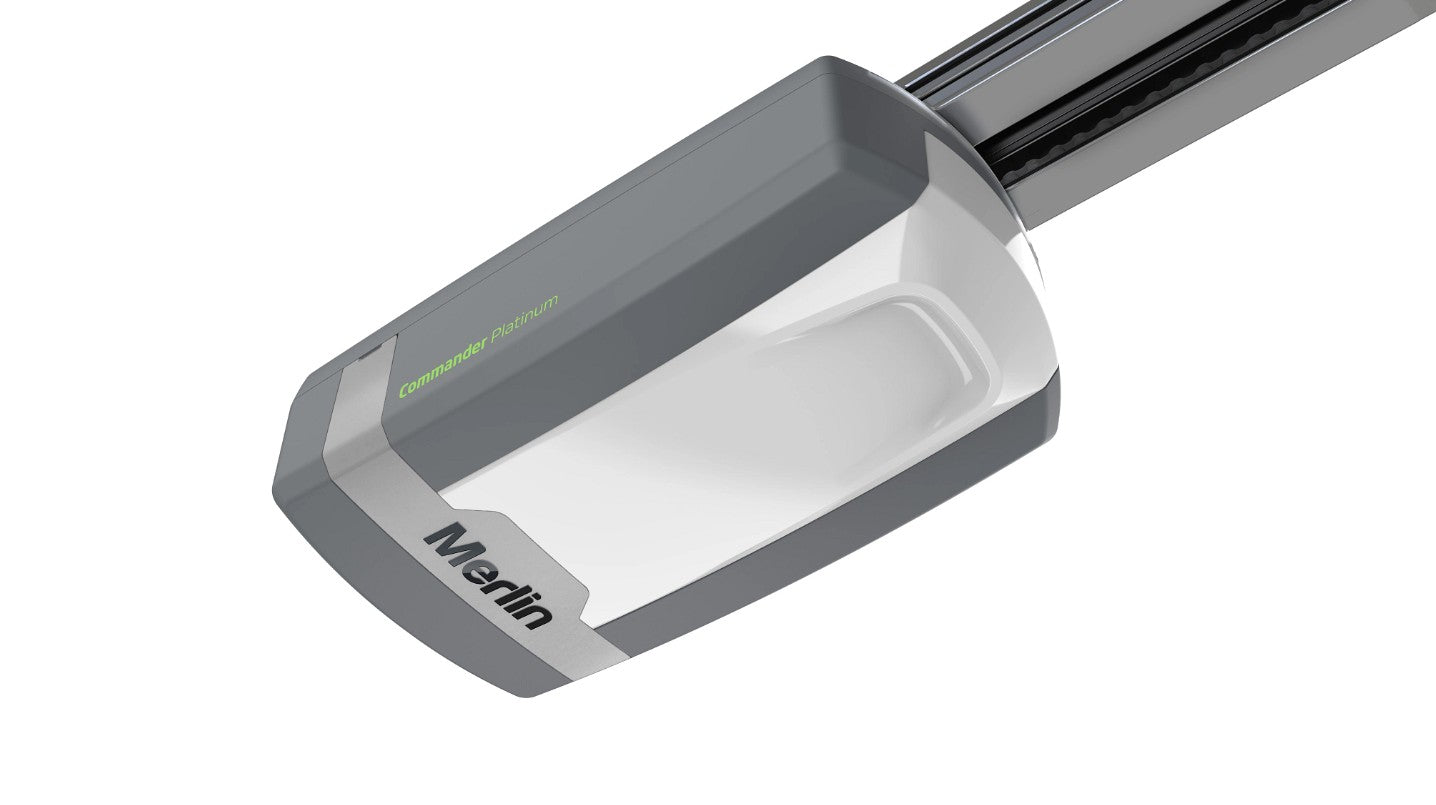

Merlin Commander Platinum MS135MYQ

FOR PICK-UP ONLY

INCLUDES:

• 1x Merlin Commander Platinum MS135MYQ
• 2 x Premium E970M remotes
• 1 x E138M Wireless Wall Button
• 1x Safety IR Beams (774ANZ)
• 1x myQ Gateway M828AU
• 1x 2.5m rail

SPECIFICATIONS:

• 24V DC motor with thermal overload protection
• Input voltage: 240V AC
• Rated door area up to 20m²
• Max door weight: up to 350kg
• Max peak pulling force: 1300 N
• X-rail with chain drive
• 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security + 2.0 rolling code technology
• Up to 64 memory registers
• Courtesy light: Powerful LED Lighting
• Min headroom required: 50mm
• Maximum lifting under spring tension = 20kg
• Suitable for steel and timber spring balanced doors
• Door opening time: 18 seconds
• Door closing time: 22 seconds
• Based on a 2.4m high door
• Door height: 3.0m
• Double dwelling
