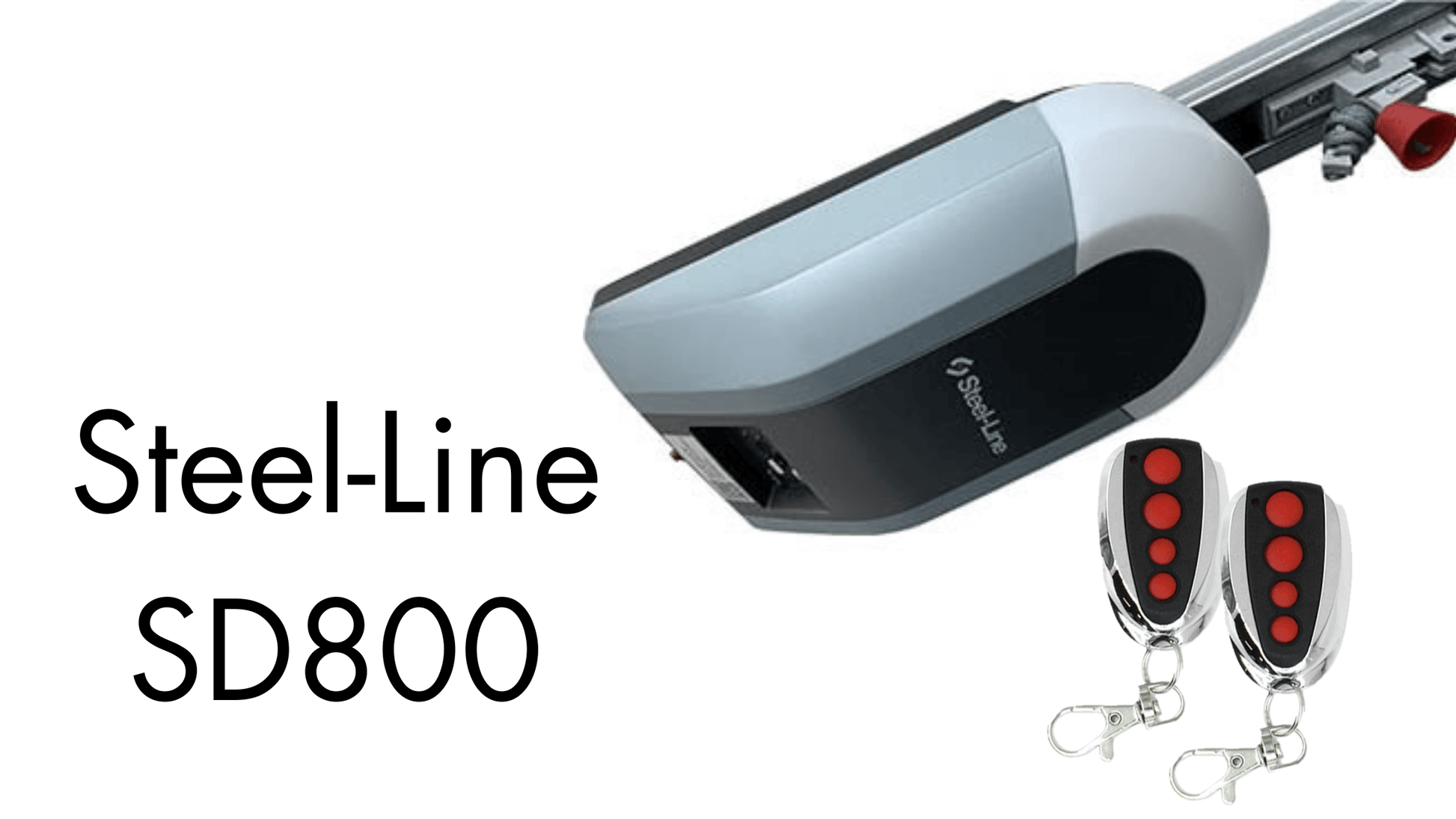

Steel-line SD 800 Sectional Motor

FOR PICKUP ONLY

Specifications

• 24V DC motor
• Electrical Input: 240V
• Rated Door area up to 12m²
• Max door weight up to 110kg
• Max peak pulling force: 800N
• One piece C-rail with belt drive
• 433.92MHz transmitter frequency with rolling code technology
• LED courtesy light
• Headroom required: minimum door headroom + 50mm


  Door Details

  • Suitable for residential spring balanced sectional doors

  • Max door height: 2.5m
  • Max door width: varies based on height (max 12m²)


  Door Opening and Closing Times



  INCLUSIONS

  • Power Head
  • Belt Rail
  • 2x Four Button Key Ring Mini-Transmitters
  • Wireless Wall Button
